Barriers and options   pictures

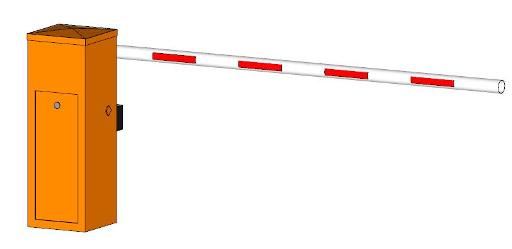

Barrier VAC300 - VAC500


Our barrier type VAC300 is a sturdy automatic barrier made of steel plate thickness 3 mm, which is folded, welded and provided with the internal reinforcements.
→ arm length standard from 2 to 6 meters (possible up to 8 m)
→ fast opening time of 1.5 to 3 seconds
→ control possible on single phase or three phase
→ dimensions: 400 mm x 400 mm x 1000 mm (WxDxH)
→ access door lockable with cylinder lock
→ manual opening with emergency lever
→ Different colors are possible
→ customization is possible


Induction loop

→ vehicle detection with one or two channels
→ driving direction detection on two-channel detectors
→ groove is cut into the road surface
→ groove is max 50 mm deep and 5 mm wide
→ loop wire with 1.5 mm³ flexible wire
→ number of loops depending on the dimensions
→ groove is filled with moisture-resistant polymer sealant (gray or black)

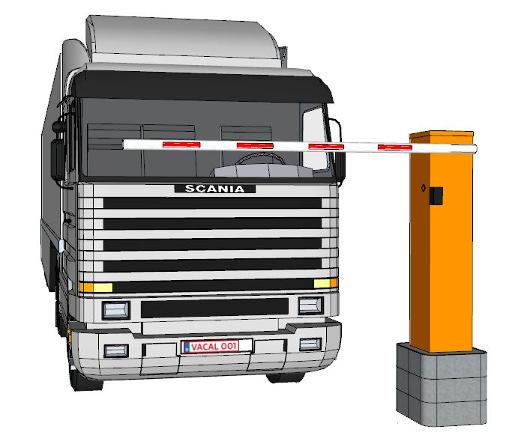

Barrier for trucks

→ raised barrier box of 1900 mm
→ raised pedestal of 600 mm
→ arm height comes to 2400 mm height
→ barrier arm visible from the truck cabin
→ arm length max 4 m
→ caution: cars drive underneath

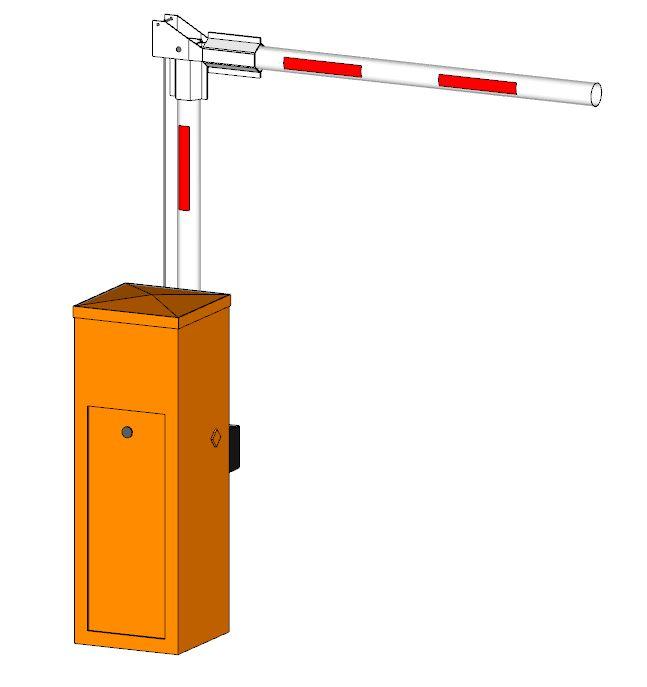

Barrier articu​lated arm

→ construction of the arm in two parts with hinge → suitable for barriers up to 4 meters
→ ideal for underground parking

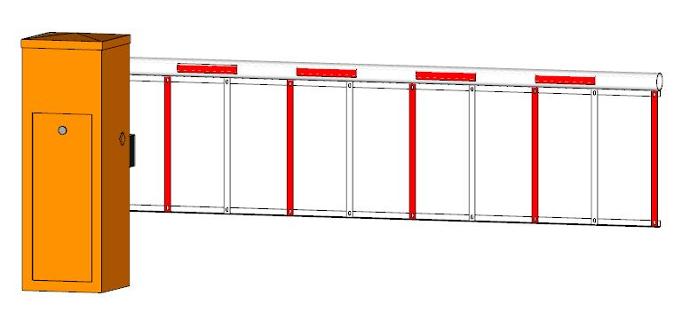

Fencing Below

→ hinged fencing at the bottom
→ suitable for barriers up to 5 meters
→ construction in flat aluminum profiles
→ color: alternating white / red
→ height: 700 mm
→ clearance underneath: 150 mm

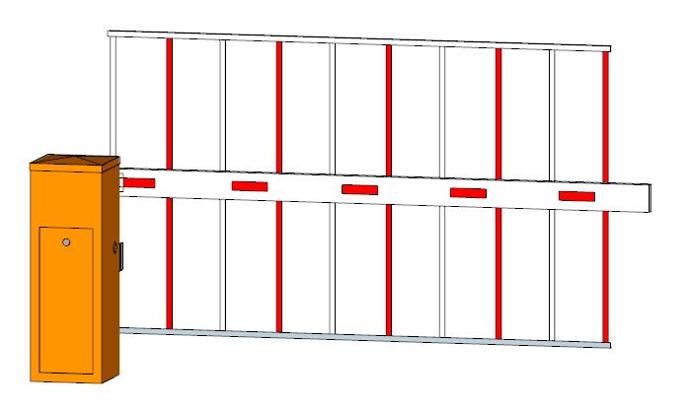

Fencing below / above

→ bottom and top hinged fencing
→ suitable for barriers up to 5 meters
→ construction in flat aluminum profiles
→ color: alternating white / red
→ height: 700 mm + 700 mm
→ clearance below: 150 mm



Hinged stop sign

→ mounted on the barrier arm
→ easy mounting by arm clamp
→ additional protection for trucks (visible from the cab)


LED strip

→ red light in closed position or in motion barrier

→ green light in open position barrier

→ power supply provided separately


Collection Pole Mechanical

→ recommended for long arm lengths
→ post made of steel with thickness 3 mm
→ height adjustable between 600 and 1000 mm
→ solid base plate 150 x150 x 6 mm for fixing on the ground
→ opening for cable routing

Collection Pole Magnetic

→ locking the barrier with electromagnet in horizontal position
→ holding force of 500 kg
→ power supply of 24 VDC
→ counter plate attached to the top of the barrier arm
→ post made of steel with thickness of 3 mm
→ height adjustable between 600 and 1000 mm
→ solid base plate 150 x 150 x 6 mm for fixing on the ground
→ opening for feeding through cabling


Manual barrier

→ manual barrier up to 6 meters in length
→ base plate with 4 holes for ground mounting
→ height of arm is 850 mm
→ rotates on a 35 mm diameter shaft
→ maintenance-free bearings
→ locking with pin horizontal and vertical position
→ counterweight to keep the arm balanced

Traffic Island

→ traffic island with galvanized precast pedestals
→ filled with concrete
→ possibility for one or more ram posts



Pedestals

→ precast concrete pedestal
→ hole for guard tube with cables
→ pedestal for pole, pillar and barrier
→ makes assembly easy

Setup

Single lane

→ various combinations possible
→ controlled entry (with column)
→ free entry (automatic opening through loop/radar)
→ controlled exit (with column)
→ free exit (automatic opening through loop/radar)



Double lane

→ various combinations possible
→ controlled entry (with column)
→ free entry (automatic opening through loop/radar)
→ controlled exit (with column)
→ free exit (automatic opening through loop/radar)

Columns     pictures

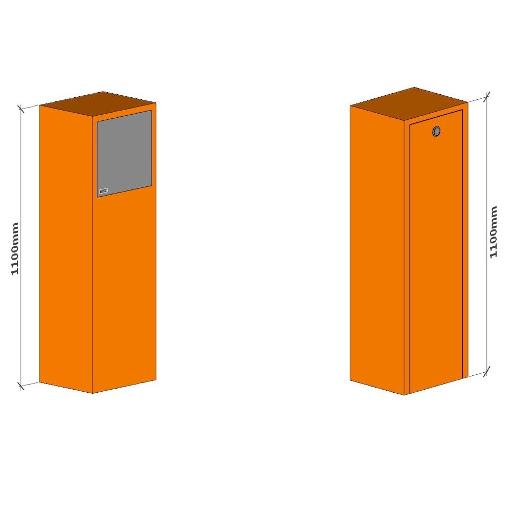

Little Column

→ registration column for passenger cars
→ dimensions: 350 mm x 300 mm x 1100 mm (WxDxH)
→ front panel made of aluminum
→ easy for mounting devices such as intercom, badge reader,...
→ access door lockable with cylinder lock
→ aluminum plate inside for mounting electrical units
→ full height cable duct along the inside
→ different colors are possible

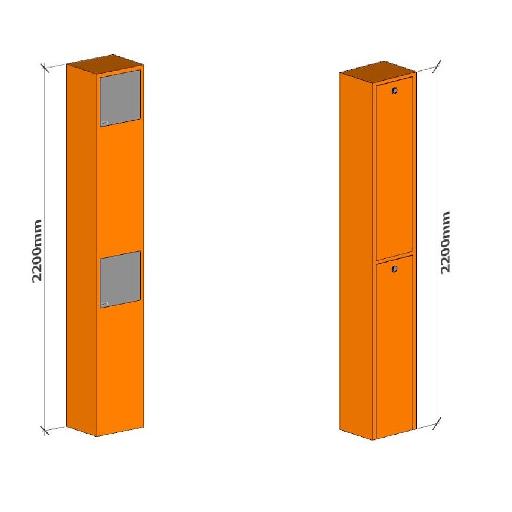

Large column​

→ registration column for cars and trucks
→ dimensions: 350 mm x 300 mm x 2200 mm (WxDxH)
→ front panel made of aluminum
→ easy for mounting devices such as intercom, badge reader,... → double access door, lockable with cylinder lock
→ aluminum plate inside for mounting electrical units
→ full height cable duct along the inside
→ different colors are possible

Control post

→ post for operation made of steel with thickness 3 mm
→ Recessed or surface mounting possible
→ dimensions: 150 mm x 150 mm
→ Different heights available
→ sturdy base plate for ground mounting
→ opening for cable routing
→ pole can be equipped with intercom, card reader,...
→ different colors are possible
→ customization possible


Rental

Mobile barrier

→ suitable for temporary vehicle access management
→ closure of construction sites, events, parking lots
→ vehicle detection by laser sensor
→ remote control (2 included)
→ various operating options possible


Easily movable

→ quick installation (plug and play)
→ supply voltage = 230 VAC
→ for rental from one day
→ opening and closing time of 3 to 5 seconds
→ arm length up to 6 meters
→ dimensions: 1200 mm x 800 mm x 1500 mm (WxDxH)
→ easy to move with forklift or through the lifting eyes


Toegangscontrole     pictures

Carousel

→ industrial rotating carousel for frequent use
→ available in single or double versions
→ motorized man-high turnstile made of steel
→ arms made of stainless steel
→ top cover is removable
→ turning radius of 1260 mm
→ passage angle of 90° with 4 arms or 120° with 3 arms
→ different configurations are possible for each direction of passage



Turnstile

→ industrial tripod for frequent use
→ steel housing with removable hood
→ arms made of stainless steel
→ locked with a safety lock
→ easy installation and commissioning
→ little to no maintenance
→ different configurations are possible for each direction of passage


Remote control

→ radio receiver one channel or two channel
→ easy installation and commissioning
→ external antenna for better range
→ remote control with 4 buttons



Code keyboard

→ autonomous anti-vandalism code keyboard EasyBKA
→ blue illuminated code panel
→ suitable for outdoor applications
→ up to 500 codes
→ other brands possible: Rosslare, Paxton, CDVI,...


 Card reader

→ access control with card reader
→ stand-alone systems with one card reader up to 1000 users
→ small systems up to 20 accesses and 2500 users
→ larger systems up to 5000 accesses and 100000 users
→ anti-passback function
→ access groups, time schedule
→ mifare/desfire reader 13.56 MHz with or without keypad
→ HID 125 Khz readers
→ HID iClass readers 13.56 MHz
→ Deister readers
→ STID readers
→ long distance readers
→ different brands possible: Dinec, Paxton, CDVI, HID, ...

Intercom GSM kit

→ 1 or 2 call buttons

→ with or without code keyboard

→ extensive systems up to 50 bell push buttons possible

→ utilizes the GSM network

→ SIM card to be provided by customer

→ remote opening by CLIP function

→ programming by SMS



Traffic Lights       pictures

Traffic light diameter 100

→ black PVC housing
→ LED modules red / green with a diameter of 100 mm
→ integrated sunshades
→ orientable for best position
→ voltage 230 VAC
→ mounting on wall
→ pole with base plate is available



Traffic light diameter 200

→ black PVC housing
→ LED modules red / green with a diameter of 200 mm
→ integrated sunshades
→ orientable for best position
→ voltage 230 VAC
→ mounting on wall
→ pole with base plate is available


Controller for traffic lights

→ standard solution
→ electrical cabinet with logic controller (PLC)
→ perfect for narrow passageways where two cars cannot cross → priority control with traffic lights
→ control of traffic lights with induction loops
→ other control possible (radar, photocells, remote control,...)
→ application: entrance underground parking, parking tower, ...

Radar with directional sensing

→ robust

→ reliable

→ easy to install

→ mounting from 2m to 10m high

→  optimum recognition of persons even at 10m

→ discrimination between vehicles and persons

→ parallel traffic filter

C​amera

Security

→ installation of security cameras
→ dome cameras
→ bullet cameras
→ day and night possible with infrared
→ zoom function
→ software with innovative functions
→ advanced motion detection
→ view images remotely with an app
→ HD quality images stored in HD recorder or computer
→ recording mode: continuous, time-controlled, motion detection → different brands possible: Hikvision, AXIS, Sefica,...


ANPR license plate recognition

→ ANPR = Automatic Number Plate Recognition
→ vehicle access control
→ management of parking lot entrances and exits
→ software searches for license plate
→ list of allowed or blocked vehicles
→ easy to install, configure and manage
→ cost-effective stand-alone system
→ single lane detection up to 30 km/h
→ day and night capability with infrared
→ support for controller and relay modules

Payment System

Valina Payment Terminal

→ intuitive and interactive payment terminal (all in one)
→ multimedia color touch screen (3.5 ", 64 K)
→ accepts any electronic payment method
→ contactless cards (NFC)
→ chip cards
→ magnetic stripe cards
→ supports PIN code entry
→ impact and scratch-resistant glass display with excellent readability
→ vandalism-proof
→ water- and dustproof


Built into column

→ payment terminal is built into the column
→ one presents the card when entering
→ the time is linked to the bank card number
→ the barrier opens
→ one must present the card again when driving out
→ display shows the amount due
→ customer agrees to pay
→ in the event of a successful transaction, the barrier opens
 → intercom provided as a fallback scenario
→ remote opening by intercom

Automation   pictures

Programmation

→ customized electrical cabinet
→ automation of the barriers
→ automation of traffic lights
→ integration with weighbridges
→ integration with access control
→ integration with gate control
→ integration with ANPR camera
→ Siemens PLC (logo or S7-1200)


Scan and Go

→ operation:
→ free entry: no ticket, one obtains exit ticket at reception
→ enter with ticket: validity period mentioned on ticket
→ ticket with barcode: scan
→ barrier will open
→ ticket with numerical code: enter code on keyboard
→ barrier will open
→ ticket printer with controller at reception
→ new ticket is printed when ticket is lost or invalid
→ preset time (e.g. 60 min) to leave the parking lot
→ one controller at ticket printer
→ one controller at the barrier
→ controllers are not connected, synchronization based on time → NO wiring needed between controllers


NFC reader for bank cards

→ operation:
→ card reader is set according to type of bank
→ barrier will only open for cardholders of relevant bank
→ enter with valid bank card
→ barrier will open
→ exit with bank card within 30 min
→ barrier will open
→ limited time for minor operations: cash withdrawal from ATM, requesting statements
→ longer time present
→ card must be validated again
→ bank card can be reactivated in the branch
→ one controller at the validator
→ one controller at the card readers


Display number of free places

→ FULL/FREE display
→ display number of free spaces
→ trolley counting possible with induction loops
→ counting of cars possible with parking sensor
→ customized display possible
→ reset of the counting possible



Parking sensor

→ sensor with color indication
→ recommended for covered parking lots
→ RED = parking space occupied
→ GREEN = parking space free
→ parking controller counts the number of free spaces
→ visualization possible via display at the entrance
→ Smoother traffic of vehicles



Parking bracket

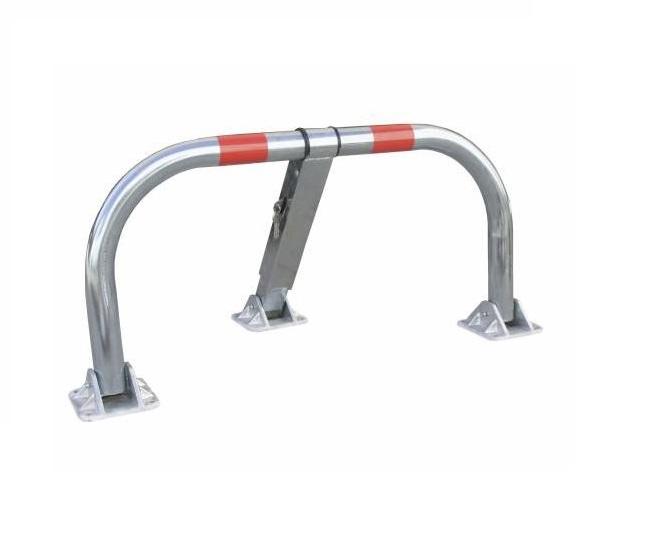

Fixed parking bracket

→ easy to install
→ professional parking bracket
→ with built-in cylinder lock
→ galvanized steel

Automatic parking bracket

→ automatic remote parking bracket
→ applications on the smartphone
→ easy raising and lowering of the bracket from the car
→ works on solar energy - no power supply needed
→ 6 months autonomy on one full battery charge
→ weatherproof
→ manual operation with emergency key possible
→ temporary digital key for visitors
→ handheld transmitter for those who do not want a digital key


Radar

79Ghz mm Watt radar sensor

→  powerful sensor for vehicle recognition with radar technology
→ detector quickly activates barriers
→ operates not on motion, but on PRESENCE
→ perfect alternative to an induction loop
→ various modes of activation
→ suitable for detection of all types of cars
→ detection of people - cyclists - ...
→ setting via app
→ IP65



Alternative for induction loop

→ automatic remote parking bracket
→ height of 650mm...800mm
→ 200...300mm away from the barrier arm
→ Connection with cable gland M16
→ Left adjustable from 0.1m ...1.5m
→ Right adjustable from 0.1m ...1.5m
→ Max range 1m ...6m → Horizontal +/- 60° range
→ Vertical +/- 15° range


Versatile device

→ the radar detects any object (car-truck-person) that may or may not be moving in the detection field.

→ via an app, which can be requested via Google play or via App Store, all detection settings can be set up wirelessly !!!

This radar can be used as an anti-colission (mode1) at automatic barriers or as a trigger (mode2) for opening barriers.
